V2(IIW2) Ultrasonic Test Block(ISO Standards)

                                                                Packing case

Description:

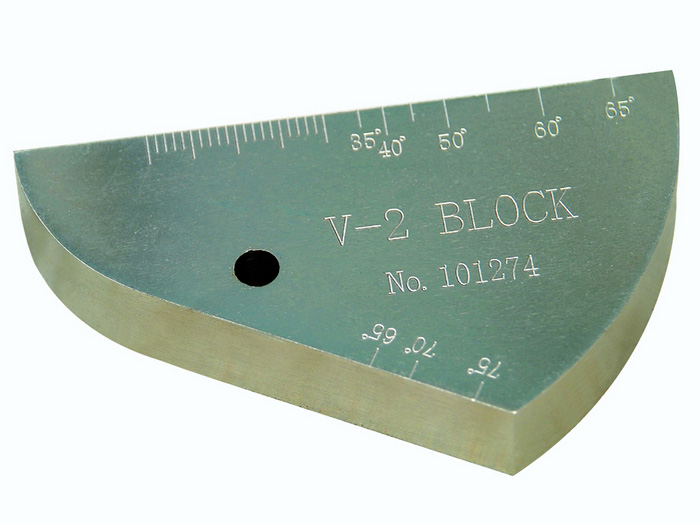

12.5 mm thick small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain. Includes a 25mm and 50 mm radius, 5.0 mm hole, engraved reference mark scales from 40 to 75 degrees. In accordance with BS EN 27963:1992, ISO 7963：1985 Cal block No. 2, Fig. 1.
-Dimensions: 75mm x 43mm x 12.5mm
-Also available in 20mm and 25mm thicknesses，1.5 mm hole for calibration of non-miniature probes.

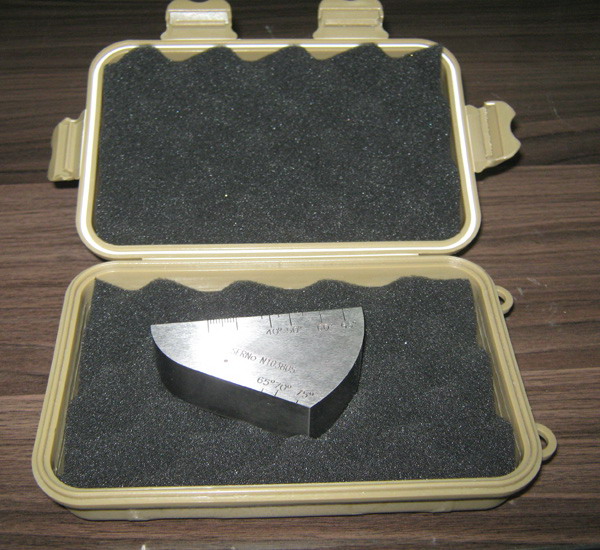

-With storage case and maker certification
