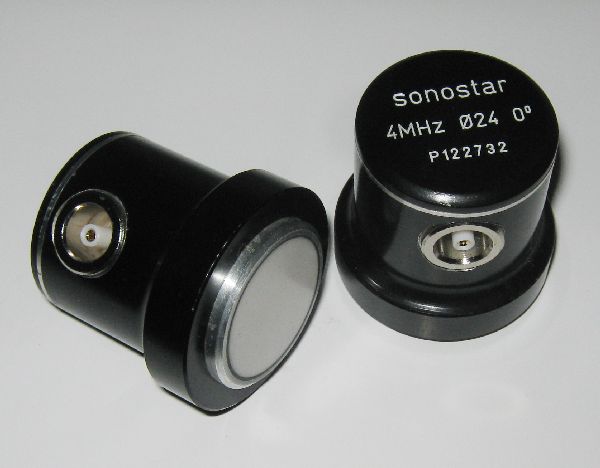

 Piezoelectric ceramic,Probe >> Straight Beam probe (NDT, ultrasonic, ultrasound, transducer)


Number:
2231171316
Name:
Straight Beam probe (NDT, ultrasonic, ultrasound, transducer)
Spec:
Memo:
Class:
Piezoelectric ceramic,Probe

    Product Readme
Type:
0.5P28、1P28、1P20、2.5P28、2.5P6、2.5P8、2.5P10、2.5P12、2.5P14、2.5P20、5P6、5P8、5P10、5P12、5P14、5P20、10P6、10P10



Model

Similar model

Frequency(MHz)

Crystal Size(mm)

N

Default connector

10P5N



10

10



Microdot

1P10N

K1N

1

10

4

LEMO 00

2P10N

K2N

2

10

8

LEMO 00

4P10N

K4N

4

10

16

LEMO 00

5P10N

K5N

5

10

20

LEMO 00

10P10N



10

10



Microdot

1P14N



1

20

16

LEMO 1 or BNC

2P14N



2

14

34

LEMO 1 or BNC

4P14N



4

14

62

LEMO 1 or BNC

5P14N



5

14

76

LEMO 1 or BNC

1P20N

B1F

1

20

16

LEMO 1 or BNC

2P20N

B2F

2

20

34

LEMO 1 or BNC

4P20N

B4F

4

20

62

LEMO 1 or BNC

5P20N

B5F

5

20

76

LEMO 1 or BNC

1P24N(bandwidth70%)

K1G

1

24

33

LEMO 1 OR BNC

2P24N(bandwidth70%)

K1G

2

24

33

LEMO 1 OR BNC
