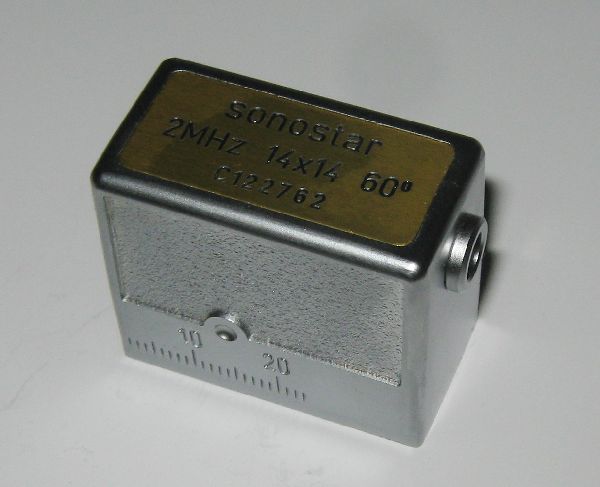

 Piezoelectric ceramic,Probe >> Angle beam probe (NDT, ultrasonic, ultrasound, transducer)


Number:
2231112616
Name:
Angle beam probe (NDT, ultrasonic, ultrasound, transducer)
Spec:
Memo:
Class:
Piezoelectric ceramic,Probe

    Product Readme

Type:
Frequency:2.5P、4P、5P
Size:8×9、9×9、10×16、13×13、14×14、18×18、20×22
Angle:A45、A60、A70、 K 1、K 1.5、K2、K2.5、K3



Model

Similar model

Frequency(MHz)

Crystal Size(mm)

Angle

N

Default connector

0.5P8×9A45



0.5

8×9

45

15

LEMO 00

0.5P8×9A60



0.5

8×9

60

15

LEMO 00

0.5P8×9A70



0.5

8×9

70

15

LEMO 00

1P8×9A45



1

8×9

45

15

LEMO 00

1P8×9A60



1

8×9

60

15

LEMO 00

1P8×9A70



1

8×9

70

15

LEMO 00

2P8×9A45

MWB 45-2

2

8×9

45

15

LEMO 00

2P8×9A60

MWB 60-2

2

8×9

60

15

LEMO 00

2P8×9A70

MWB 70-2

2

8×9

70

15

LEMO 00

4P8×9A45

MWB 45-4

4

8×9

45

30

LEMO 00

4P8×9A60

MWB 60-4

4

8×9

60

30

LEMO 00

4P8×9A70

MWB 70-4

4

8×9

70

30

LEMO 00

0.5P14×14/13×13A45



0.5

14×14

45

39

LEMO 00 OR LEMO 1

0.5P14×14/13×13A60



0.5

14×14

60

39

LEMO 00 OR LEMO 1

0.5P14×14/13×13A70



0.5

14×14

70

39

LEMO 00 OR LEMO 1

1P14×14/13×13A45



1

14×14

45

39

LEMO 00 OR LEMO 1

1P14×14/13×13A60



1

14×14

60

39

LEMO 00 OR LEMO 1

1P14×14/13×13A70



1

14×14

70

39

LEMO 00 OR LEMO 1

2P14×14/13×13A45

SWB 45-2

2

14×14

45

39

LEMO 00 OR LEMO 1

2P14×14/13×13A60

SWB 60-2

2

14×14

60

39

LEMO 00 OR LEMO 1

2P14×14/13×13A70

SWB 70-2

2

14×14

70

39

LEMO 00 OR LEMO 1

4P14×14/13×13A45

SWB 45-4

4

14×14

45

39

LEMO 00 OR LEMO 1

4P14×14/13×13A60

SWB 60-4

4

14×14

60

39

LEMO 00 OR LEMO 1

4P14×14/13×13A70

SWB 70-4

4

14×14

70

39

LEMO 00 OR LEMO 1

5P14×14/13×13A45

SWB 45-5

5

14×14

45

98

LEMO 00 OR LEMO 1

5P14×14/13×13A60

SWB 60-5

5

14×14

60

98

LEMO 00 OR LEMO 1

5P14×14/13×13A70

SWB 70-5

5

14×14

70

98

LEMO 00 OR LEMO 1

1P20×22A45

WB 45-1

1

20×22

45

45

LEMO 1 OR BNC

1P20×22A60

WB 60-1

1

20×22

60

45

LEMO 1 OR BNC

1P20×22A70

WB 70-1

1

20×22

70

45

LEMO 1 OR BNC

2P20×22A45

WB 45-2

2

20×22

45

90

LEMO 1 OR BNC

2P20×22A60

WB 60-2

2

20×22

60

90

LEMO 1 OR BNC

2P20×22A70

WB 70-2

2

20×22

70

90

LEMO 1 OR BNC

4P20×22A45

WB 45-4

4

20×22

45

180

LEMO 1 OR BNC

4P20×22A60

WB 60-4

4

20×22

60

180

LEMO 1 OR BNC

4P20×22A70

WB 70-4

4

20×22

70

180

LEMO 1 OR BNC
