 Ultrasonic Test Block >> V2(IIW2) Ultrasonic Test Block(ISO Standards)


Number:
4103121631
Name:
V2(IIW2) Ultrasonic Test Block(ISO Standards)
Spec:
Memo:
Class:
Ultrasonic Test Block

    Product Readme

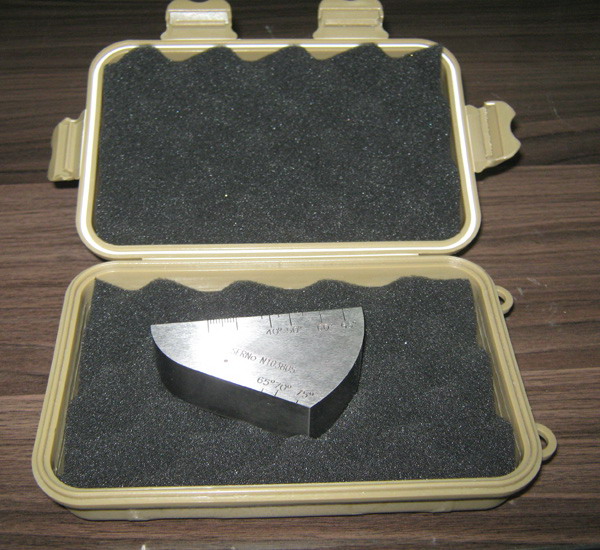

Packing case

Description:
12.5 mm thick small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain. Includes a 25mm and 50 mm radius, 5.0 mm hole, engraved reference mark scales from 40 to 75 degrees. In accordance with BS EN 27963:1992, ISO 7963:1985 Cal block No. 2, Fig. 1.
-Dimensions: 75mm x 43mm x 12.5mm
-Also available in 20mm and 25mm thicknesses,1.5 mm hole for calibration of non-miniature probes.
-With storage case and maker certification


Description
/Application

Standard Made To

Material Size

Small calibration block for site checking of shear wave probes, time base and gain. 1.5mm or 5mm diameter hole target

BS 2704
IOW (Institute of Welding)

12.5x43x75mm
